PCB Heat Sinks and Thermal Management in RF and Microwave Applications

In RF and microwave applications, efficient thermal management is critical due to the high power dissipation of active components (e.g., power amplifiers, transistors, and MMICs). Excessive heat can degrade performance, reduce reliability, and shorten component lifespan. Heat sinks and proper PCB thermal design are essential to maintain optimal operating temperatures.

1. Sources of Heat in RF/Microwave PCBs

• Power Amplifiers (PAs): High-power RF amplifiers generate significant heat.

• Transistors (GaN, GaAs, LDMOS): High-frequency transistors often operate at high power densities.

• Passive Components: Resistors, inductors, and transmission lines can also dissipate heat.

• Dielectric Losses: High-frequency signals cause dielectric heating in PCB substrates.

2. PCB Heat Sink Solutions

A. Embedded Heat Sinks

• Metal-Core PCBs (MCPCBs): Use aluminum or copper bases for better heat conduction.

• Thermal Vias: Arrays of plated vias under hot components transfer heat to ground planes or heat sinks.

• Direct-Bonded Copper (DBC): Used in high-power RF modules for excellent thermal conductivity.

B. Attached Heat Sinks

• Extruded Aluminum Heat Sinks: Common for high-power RF amplifiers.

• Pin-Fin Heat Sinks: Improve convection cooling in compact designs.

• Liquid Cooling: Used in extreme power applications (e.g., radar, 5G base stations).

C. Advanced Materials for Thermal Management

• Thermally Conductive Substrates:

  • Rogers TMM®, CuClad® (low CTE, high thermal conductivity).

  • Aluminum Nitride (AlN), Beryllium Oxide (BeO): For high-power RF modules (but BeO is toxic).

• Thermal Interface Materials (TIMs):

  • Thermal Pads, Greases, Phase-Change Materials improve heat transfer between PCB and heat sink.

3. PCB Design Techniques for Thermal Management

A. Layout Optimization

• Place high-power components away from sensitive RF circuits.

• Use thermal relief pads to balance soldering and heat dissipation.

• Distribute heat-generating components to avoid localized hotspots.

B. Ground Plane & Thermal Via Design

• Thick copper planes (2oz+) help spread heat.

• Thermal via arrays under components conduct heat to the backside heat sink.

• Buried vias in multilayer PCBs improve thermal paths.

C. RF-Specific Considerations

• Microstrip vs. Stripline: Microstrip lines dissipate heat better than stripline.

• Substrate Choice: Low-loss, high-thermal-conductivity materials (e.g., Rogers 4350B, Taconic RF-35).

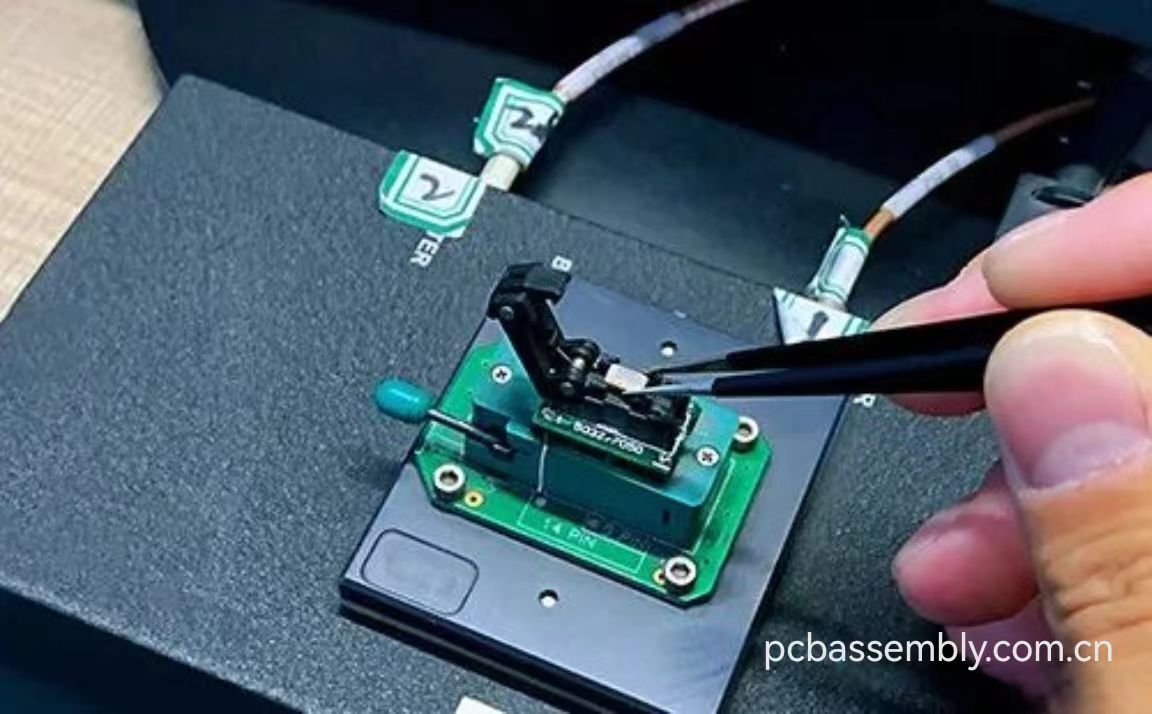

4. Simulation & Testing for Thermal Performance

• Thermal Simulation (ANSYS, COMSOL, CST): Predict hotspots and optimize heat sink placement.

• Infrared Thermography: Measure real-world thermal performance.

• Thermal Resistance (θJA) Analysis: Ensure components stay within safe operating temperatures.

5. Industry Applications

• 5G Base Stations: High-power GaN amplifiers require efficient cooling.

• Radar & Military Systems: Liquid cooling and advanced heat sinks for high-power RF.

• Satellite & Aerospace: Lightweight heat sinks with high thermal conductivity.

Effective thermal management in RF/microwave PCBs requires a combination of:
✔ High-thermal-conductivity substrates (e.g., AlN, metal-core PCBs)
✔ Optimized PCB layout & thermal vias
✔ Proper heat sink selection (extruded, pin-fin, or liquid cooling)
✔ Thermal simulation & testing

By implementing these strategies, designers can ensure reliable performance and longevity in high-frequency, high-power applications.
